Teflon (PTFE) Gasket
High-Performance Sealing for Chemical, Industrial & High-Purity ApplicationsTeflon (PTFE) gaskets provide high-integrity sealing for applications requiring exceptional chemical resistance, non-reactivity, and thermal stability. They function as reliable sealing and insulation components in systems handling corrosive chemicals, high-purity fluids, and extreme temperatures.
PTFE gaskets maintain durability, low friction, and dimensional stability across a wide temperature range from −200°C to +260°C. Rubber Xpert Inc. manufactures and supplies custom Teflon (PTFE) gaskets with precision cutting, consistent quality, and bulk production support.
Buy Neoprene Rubber Gaskets in Bulk from a Trusted
Manufacturer, Rubber Xpert Inc.
Buy Teflon (PTFE) gaskets in bulk directly from a manufacturer equipped for certified materials, consistent quality control, and precision-cut custom dimensions. Rubber Xpert Inc. supports OEM production with competitive pricing, fast turnaround, and reliable bulk supply for industrial and high-purity applications.
Virgin PTFE Gaskets
Virgin PTFE gaskets are engineered for chemically aggressive and high-purity applications requiring inertness, thermal stability, and low friction. They deliver reliable sealing performance in environments where corrosion, contamination, and temperature extremes are critical concerns.
- Applications: Chemical Processing, Pharmaceuticals, Food & Beverage
- Material Type / Grade: Virgin PTFE
- Temperature Range: −200°C to +260°C
- Hardness (Durometer): Not Applicable (Thermoplastic)
- Thickness Range: 1.5 mm to 6 mm
- Key Features: Chemically Inert, Non-contaminating, Excellent Thermal Stability
Filled PTFE Gaskets (Glass / Carbon / Bronze)
Filled PTFE gaskets are engineered for enhanced mechanical strength and creep resistance in applications requiring dimensional stability and pressure performance. They deliver consistent sealing where higher loads and wear resistance are required.
- Applications: Industrial Piping, Pumps, Valves
- Material Type / Grade: Glass-filled, Carbon-filled, Bronze-filled PTFE
- Temperature Range: −200°C to +260°C
- Hardness (Durometer): Not Applicable (Thermoplastic)
- Thickness Range: 1.5 mm to 6 mm
- Key Features: Improved Wear Resistance, Reduced Cold Flow, Higher Load Capacity

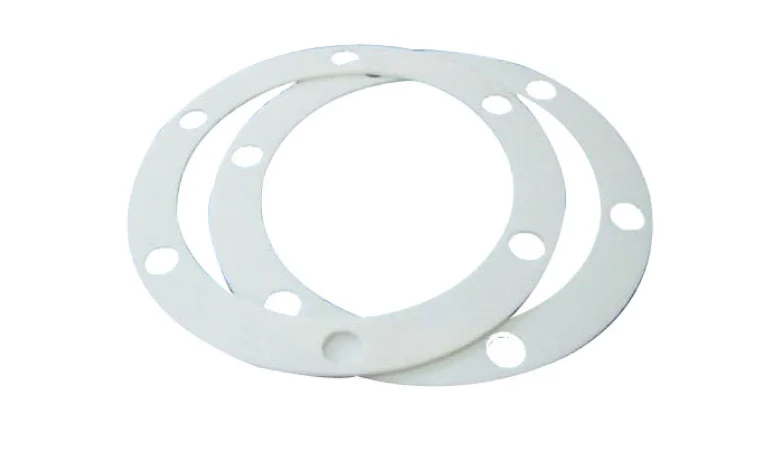

PTFE Flange Gaskets
PTFE flange gaskets are engineered for corrosion-resistant sealing in flange joints requiring chemical stability and wide temperature tolerance. They deliver dependable sealing where aggressive media and thermal cycling are present.
- Applications: Chemical Plants, Oil & Gas, Water Treatment
- Material Type / Grade: Virgin or Filled PTFE
- Temperature Range: −200°C to +260°C
- Hardness (Durometer): Not Applicable (Thermoplastic)
- Thickness Range: 1.5 mm to 5 mm
- Key Features: Corrosion Resistance, Low Friction, Flange Compatibility
Expanded PTFE (ePTFE) Gaskets
Expanded PTFE gaskets are engineered for applications requiring compressibility, conformability, and leak-tight sealing on irregular flange surfaces. They deliver reliable performance where low bolt load and surface imperfections are concerns.
- Applications: Low-stress Flanges, Glass-lined Equipment
- Material Type / Grade: Expanded PTFE
- Temperature Range: −200°C to +260°C
- Hardness (Durometer): Not Applicable
- Thickness Range: 1.5 mm to 6 mm
- Key Features: Excellent Conformability, Low Sealing Stress, Creep Resistance
Die-Cut PTFE Gaskets
Die-cut PTFE gaskets are engineered for precision sealing applications requiring tight tolerances, repeatability, and chemical resistance. They deliver consistent performance in assemblies where accuracy and cleanliness are critical.
- Applications: OEM Equipment, Electronics, Medical Devices
- Material Type / Grade: Virgin or Filled PTFE
- Temperature Range: −200°C to +260°C
- Hardness (Durometer): Not Applicable
- Thickness Range: 0.5 mm to 5 mm
- Key Features: Precision Profiles, Tight Tolerances, Clean Edges
Why Buy Teflon (PTFE) Gaskets from Rubber Xperts Inc?
Rubber Xperts Inc. uses certified PTFE materials and engineering-grade manufacturing processes to deliver precision-crafted Teflon (PTFE) gaskets designed for durability, sealing accuracy, and consistent industrial performance. Every gasket is produced under strict quality controls to ensure reliable operation in chemically aggressive, high-temperature, and high-purity environments.
You buy Teflon (PTFE) gaskets from RubberXperts Inc because of the following:
- ISO-Certified Manufacturing: Controlled production systems ensure repeatable quality, traceability, and compliance for PTFE gasket manufacturing.
- Industry-Approved Material Grades: Virgin and filled PTFE compounds selected for chemical stability, thermal resistance, and load performance.
- Advanced Fabrication Capabilities: CNC cutting, die-cutting, and precision forming for tight tolerances and complex PTFE gasket profiles.
- Strict Dimensional Tolerances: Consistent compression and sealing performance across all production runs.
- Material Options for Demanding Environments: Solutions engineered for corrosive chemicals, extreme temperatures, and high-purity applications.
- OEM & Bulk Production Support: Scalable manufacturing capacity for repeat orders, large volumes, and OEM supply programs.
- Nationwide Delivery & Volume-Tier Pricing: Reliable logistics combined with cost advantages for bulk procurement.
- 10,000 sq. ft. Fully Equipped Production Facility: In-house manufacturing built to support fast turnaround and consistent quality.
What Are Teflon (PTFE) Gaskets?
Teflon (PTFE) gaskets are sealing components manufactured from polytetrafluoroethylene, a fluoropolymer known for its exceptional chemical inertness and thermal stability. Their core function is to provide leak-tight sealing between mating surfaces in static sealing applications.
Teflon (PTFE) perform reliably across extreme temperatures, maintain low friction, and resist chemical attack from acids, solvents, and corrosive media. They also offer excellent insulation properties and dimensional stability, supporting consistent sealing under demanding conditions.
Industries like chemical processing, pharmaceuticals, food and beverage, oil and gas, and high-purity systems use Teflon gaskets. They deliver non-contaminating, corrosion-resistant sealing where other gasket materials fail.
What Types of Teflon (PTFE) Gaskets Are Available?
The types of Teflon (PTFE) gaskets available include:
Virgin PTFE Gaskets
Virgin PTFE gaskets are made from pure, unfilled PTFE for maximum chemical inertness. They offer excellent temperature resistance, low friction, and non-contaminating sealing. Virgin PTFE gaskets are best for chemical, pharmaceutical, and food processing. However, you should consider cold flow under high load and proper compression control is required.
Filled PTFE Gaskets
Filled PTFE gaskets incorporate fillers to improve strength and creep resistance. They provide better load-bearing and wear performance than virgin PTFE. filled PTFE gaskets are best for industrial piping, pumps, and valves. Selection depends on filler type to match chemical and mechanical requirements.
Expanded PTFE (ePTFE) Gaskets
Expanded PTFE gaskets are highly compressible and conformable sealing materials. They seal effectively on irregular or low-stress flange surfaces. Expanded PTFE gaskets are best for glass-lined equipment and low-bolt-load systems. They are not ideal for applications requiring high structural rigidity.
PTFE Flange Gaskets
PTFE flange gaskets are precision-cut seals designed for flange connections. They deliver corrosion resistance and wide temperature tolerance. PTFE flange gasket is best for chemical plants, oil and gas, and water treatment. However, flange standard, pressure rating, and thickness must be matched carefully.
Die-Cut PTFE Gaskets
Die-cut PTFE gaskets are precision-shaped seals manufactured to tight tolerances. They provide consistent sealing in OEM and high-purity assemblies. Die-cut PTFE gaskets are best for electronics, medical devices, and specialty equipment. You need accurate dimensional specification for critical performance.
What Materials Are Used to Manufacture PTFE Gaskets?
The materials used to manufacture PTFE gaskets include:
- Virgin PTFE: Pure PTFE material offering maximum chemical inertness and flexibility. It has a wide operating temperature range of −200°C to +260°C and near-universal chemical resistance for high-purity sealing.
- Glass-Filled PTFE: PTFE reinforced with glass fibers to improve stiffness and creep resistance. It maintains chemical resistance with reduced flexibility, while retaining the same temperature capability of −200°C to +260 °C.
- Carbon-Filled PTFE: PTFE blended with carbon for enhanced wear resistance and dimensional stability. It is suitable for higher loads while retaining excellent chemical resistance and thermal stability up to +260°C.
- Bronze-Filled PTFE: A composite PTFE material designed for improved mechanical strength and thermal conductivity. It offers good chemical resistance and reliable performance in demanding industrial environments.
- Expanded PTFE (ePTFE): A highly flexible, compressible PTFE structure with excellent chemical resistance and wide temperature tolerance. It is ideal for low-stress and irregular sealing surfaces.
PTFE Gasket Material Comparison Table
| Material | Operating Temperature | Compression Set | Chemical Resistance | Cost | Best For |
|---|---|---|---|---|---|
| Virgin PTFE | −200°C to +260°C | Moderate (Creep-Prone Under High Load) | Excellent (Near-universal) | Medium | High-Purity Sealing, Chemicals, Pharma, Food |
| Glass-Filled PTFE | −200°C to +260°C | Low–Moderate | Excellent | Medium | Improved Load-Bearing, Reduced Cold Flow |
| Carbon-Filled PTFE | −200°C to +260°C | Low | Excellent | Medium–High | Wear rResistance, Dimensional Stability |
| Bronze-Filled PTFE | −200°C to +260°C | Low | Good–Very Good | Medium–High | Higher Strength, Thermal Conductivity |
| Expanded PTFE (ePTFE) | −200°C to +260°C | Low | Excellent | Medium | Low Bolt Load, Irregular Flange Surfaces |
How to Choose the Right Teflon (PTFE) Gasket for Your Needs?
To choose the right PTFE gasket, match material performance to your operating conditions to ensure long-term, leak-free sealing.
Here are tips to choose the right Teflon (PTFE) gaskets for your needs:
- Temperature Range: Confirm the gasket can operate within your minimum and maximum service temperatures.
- Durometer/Material Stiffness Select the appropriate PTFE grade or filler based on load and compression requirements.
- Pressure/Sealing Force Match gasket type to available bolt load and flange stress to control creep and cold flow.
- Chemical/Fluid Compatibility Verify resistance to process chemicals, solvents, or corrosive media.
- Environmental Exposure Consider moisture, thermal cycling, or cleanroom conditions that affect performance.
- Compliance Standards Ensure materials meet FDA, RoHS, ASTM, or other regulatory requirements where applicable.
- Dimensional Tolerances Specify tight tolerances for critical sealing surfaces and precision-fit assemblies.
Where Are Teflon (PTFE) Gaskets Commonly Used?
PTFE gaskets are commonly used in the following industries:
Automotive
PTFE gaskets are used in fuel systems, exhaust components, and sensor housings to provide chemical resistance, thermal stability, and reliable sealing under vibration and heat.
Electronics
In electronics, PTFE gaskets seal enclosures and components, protecting against moisture, chemicals, and heat while maintaining electrical insulation.
Industrial Machinery
PTFE gaskets are installed in pumps, valves, and process equipment to prevent leaks in systems exposed to corrosive fluids and elevated temperatures.
Food & Beverage Processing
They are used in processing lines and equipment to deliver hygienic, non-contaminating sealing that withstands cleaning chemicals and temperature variation.
Medical & Healthcare Equipment
PTFE gaskets provide chemically inert, stable sealing in medical devices and fluid-handling systems where purity and reliability are critical.
HVAC & Refrigeration
In HVAC and refrigeration systems, PTFE gaskets support leak prevention and temperature resistance in joints exposed to thermal cycling and chemical refrigerants.
Marine & Outdoor Environments
PTFE gaskets offer corrosion-resistant sealing in marine and outdoor applications. They maintain performance under moisture, salt exposure, and temperature extremes.
Frequently Asked Questions
Here are some frequently asked questions about our Teflon/PTFE Gaskets to help you find the answers you need:
PTFE gaskets operate reliably between −200°C and +260°C. Performance remains stable within this range when correctly specified and installed.
Yes, PTFE gaskets are suitable for chemical applications. It is inert to most acids, solvents, and corrosive media, making it suitable for aggressive chemical environments.
Yes, PTFE gaskets require high sealing force. They have low friction and limited elasticity, so proper bolt load and uniform compression are required to control creep and maintain sealing.
No, PTFE gaskets cannot be reused. Once compressed, PTFE gaskets deform. Reuse increases leak risk and is generally not recommended.
Virgin PTFE offers maximum chemical purity. Filled PTFE improves mechanical strength and creep resistance for higher-load applications.
Yes, many PTFE grades meet FDA, RoHS, and ASTM requirements. Material certification should be confirmed for regulated applications.
