Neoprene gaskets provide reliable sealing for applications requiring flexibility, moderate temperature resistance, and durable compression performance. They function as effective neoprene seals in environments exposed to weathering, oils, and mechanical movement, including closed-cell neoprene applications.
Neoprene gaskets offer balanced chemical resistance and good compression set control for long-term use. RubberXperts manufactures custom neoprene gaskets using precision processes to deliver consistent rubber gasket performance across industrial applications.
10% discount for bulk orders over $1,000
Buy neoprene rubber gaskets in bulk directly from a manufacturer equipped for wholesale supply, fast shipping, and custom production. As a reliable neoprene gasket supplier, Rubber Xpert Inc. delivers bulk neoprene gaskets made from certified materials, with consistent quality control, custom sizing, rapid turnaround, and OEM manufacturing support.
Rubber Xperts Inc. is a trusted neoprene gasket supplier delivering precision-engineered sealing solutions manufactured from certified raw materials under ISO-controlled processes. Our neoprene gaskets are produced with tight tolerances to ensure consistent sealing performance, durability, and repeatability across industrial applications.
The process starts with a detailed review of your application needs using a specification sheet. We cover operating conditions, sealing function, custom dimensions, and performance requirements.
Our engineers develop CAD-supported designs defining gasket profiles, thickness, and production tolerances to ensure accurate fit and sealing performance.
Suitable neoprene grades are selected based on flexibility, temperature range, chemical exposure, and compression behavior.
Prototype gaskets are produced using precision cutting for fit verification and functional testing, followed by prototype approval before scale production.
All approved designs move into high-volume manufacturing using controlled processes to maintain consistent dimensions and repeatability.
Each batch undergoes compliance testing, dimensional checks, and material verification to confirm adherence to specifications.
Your finished neoprene gaskets are securely packaged, labeled for traceability, and delivered on schedule through reliable logistics.

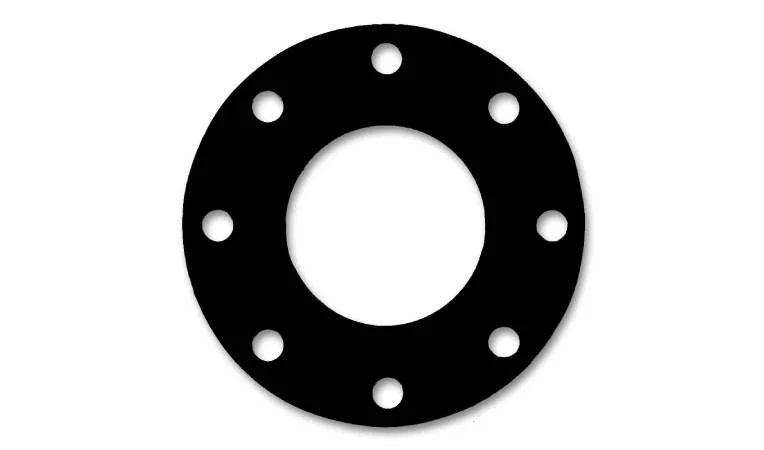

A neoprene gasket is a sealing component made from neoprene (CR) elastomer, a synthetic rubber known for its balanced mechanical and environmental resistance. It is used to create a tight barrier between mating surfaces to support transfer prevention, leak protection, and stable joint performance.
Neoprene is widely used because it resists water, oils, weathering, and ozone while maintaining flexibility under moderate heat. These properties allow neoprene gaskets to deliver reliable sealing, vibration absorption, and thermal resistance in applications exposed to moisture, movement, and outdoor conditions.
Neoprene gaskets are available in multiple forms to suit different sealing, cushioning, and insulation requirements. Each type is designed to match specific pressure levels, environmental exposure, and installation needs across industrial and commercial applications.
The types of Neoprene gaskets include:

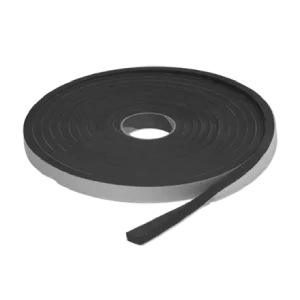

Closed-cell neoprene gaskets are sealing components made from dense neoprene foam with sealed internal cells that prevent air and moisture absorption. They offer good flexibility, low water absorption, weather resistance, and stable compression recovery, making them effective under moderate pressure and repeated loading.
Closed-cell neoprene gaskets are commonly used in HVAC systems, electrical enclosures, outdoor equipment, and industrial panels. However, you should consider temperature limits and compression requirements, as excessive load reduces long-term sealing performance.

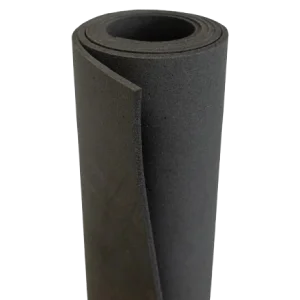

Neoprene foam (open-cell) gaskets are soft sealing components made from neoprene with interconnected cells that allow air movement and high compressibility. They provide excellent flexibility, vibration absorption, and sound damping, making them suitable where surface irregularities must be accommodated.
Open-cell neoprene gaskets are commonly used in electronics housings, appliance panels, and interior equipment. However, they are not recommended for moisture-sealing or pressurized environments due to their porous structure.

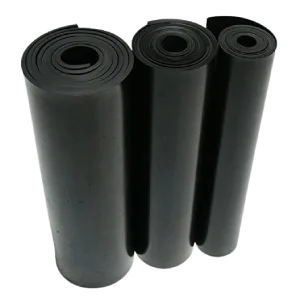

Neoprene gasket sheets are flat sheets of solid or foam neoprene used to create custom-cut sealing components for a wide range of applications. They offer good flexibility, weather resistance, oil resistance, and consistent thickness control, allowing reliable sealing and vibration absorption.
Neoprene gasket sheets are commonly used in industrial machinery, HVAC systems, and fabrication workshops. However, you should consider sheet thickness, temperature limits, and whether cutting will be manual or precision-based to maintain sealing accuracy.

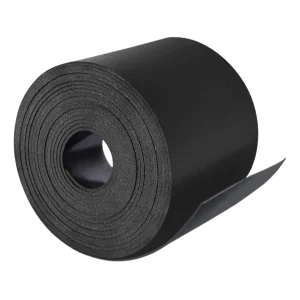

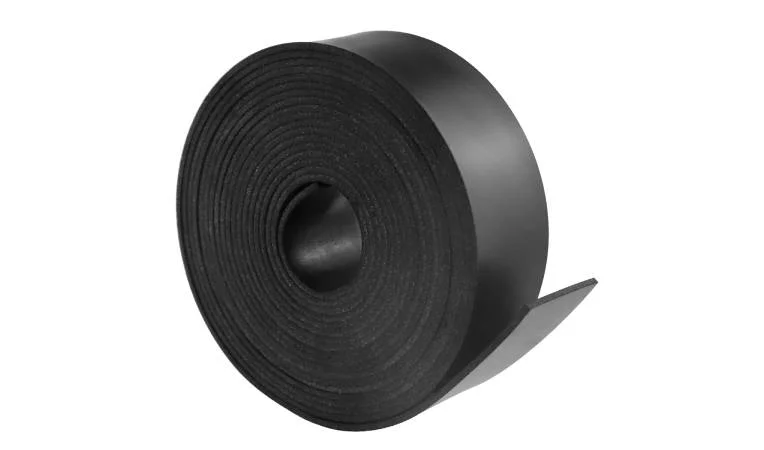

Neoprene gasket rolls are continuous lengths of neoprene material supplied in roll form for flexible sealing and on-site cutting applications. They are designed for linear sealing where long, uninterrupted gasket runs are required.
Neoprene gasket rolls provide consistent thickness, good flexibility, and resistance to weather, water, and mild oils, making them suitable for door frames, panels, and ducting. Neoprene gasket rolls are commonly used in construction, HVAC, and equipment enclosures.
Always consider roll width, thickness, and adhesive backing needs to ensure proper installation and sealing performance.

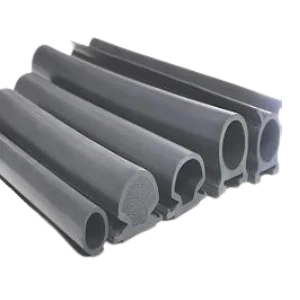

Neoprene door and enclosure seals are sealing strips and profiles designed to create airtight and watertight closures around doors, panels, and enclosures. They are used to prevent ingress of dust, moisture, and air while maintaining consistent compression.
Neoprene door and enclosure seals offer good flexibility, weather resistance, vibration damping, and long-term sealing stability, making them suitable for indoor and outdoor installations. These seals are commonly used in electrical cabinets, HVAC units, industrial enclosures, and access panels.
Proper profile selection and compression control are important to avoid neoprene door and enclosure seal fatigue or leakage over time.

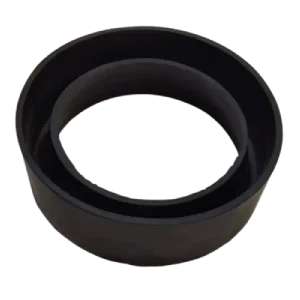

Neoprene toilet gaskets are sealing components designed to create a watertight seal between toilet bases, drain outlets, and plumbing connections. They provide good flexibility, water resistance, and compression recovery, allowing them to maintain an effective seal under constant contact with moisture.
Neoprene toilet gaskets are commonly used in residential, commercial, and institutional plumbing systems. It is important for you to consider gasket size, thickness, and compatibility with the fixture to ensure proper fit and long-term sealing performance.

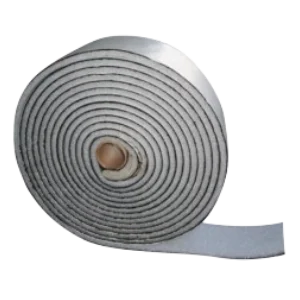

Sill sealer neoprene gaskets are sealing strips installed between structural surfaces to block air, moisture, and dust infiltration. They offer good compressibility, weather resistance, and vibration isolation, helping improve sealing performance and structural protection.
Sill sealer neoprene gaskets are commonly used in building construction, HVAC installations, and framing applications. The thickness, width, and exposure conditions are important in sil sealer neoprene gaskets to ensure effective long-term sealing.

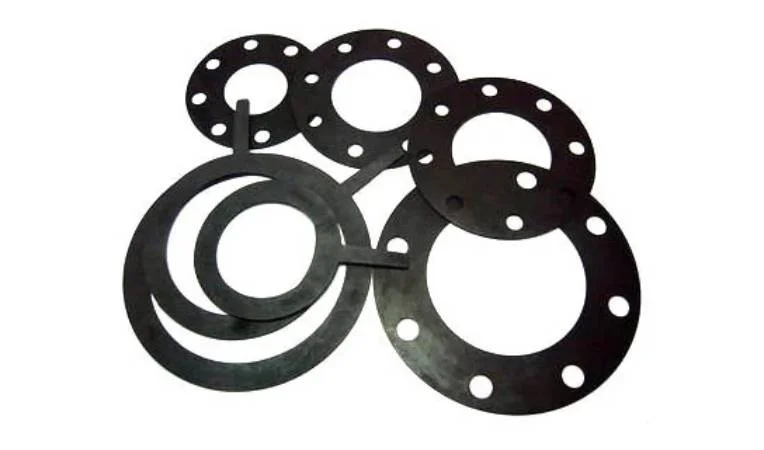

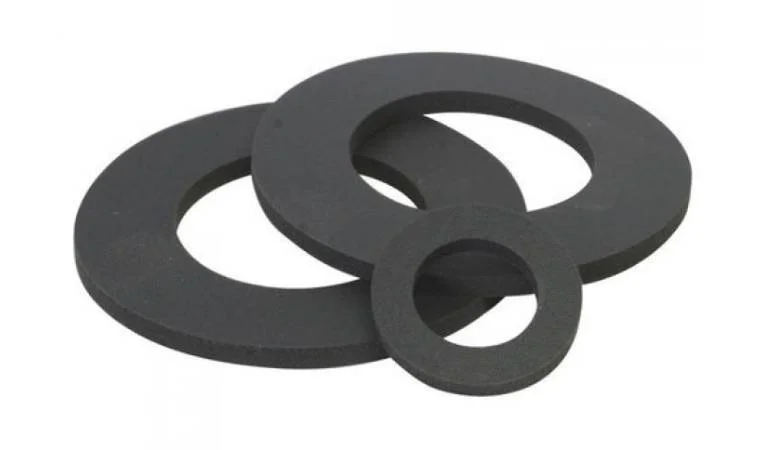

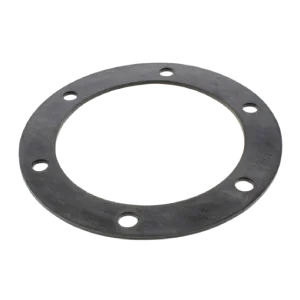

Custom neoprene gaskets are application-specific sealing components manufactured to exact dimensions, profiles, and performance requirements. They offer controlled thickness, precise tolerances, and material grades tailored for temperature exposure, compression behavior, and environmental resistance.
Custom neoprene gaskets are commonly used in OEM equipment, industrial machinery, enclosures, and specialty sealing applications. Proper specification of dimensions, load conditions, and operating environment is essential to ensure optimal performance and service life.
The materials used to manufacture neoprene gaskets include:
| Material | Durometer (Hardness) | Temperature Range | Chemical Resistance | Compression Set Performance | Best For / Ideal Applications |
|---|---|---|---|---|---|
| Solid Neoprene (CR) | 60–75 Shore A | −40°C to +120°C (−40°F to +248°F) | Good resistance to water, weather, mild oils | Low to moderate (typically 15–30%) | General Sealing, Vibration Isolation, Industrial Machinery |
| Foam Neoprene (Closed / Open Cell) | 20–40 Shore A | −40°C to +100°C (−40°F to +212°F) | Moderate resistance to moisture and weather | Moderate (20–40%) | Cushioning, Gap Filling, Thermal and Acoustic Insulation |
| Adhesive-Backed Neoprene (PSA) | 40–70 Shore A | −30°C to +100°C (−22°F to +212°F) | Similar to base neoprene material | Moderate (material-dependent) | Fast Installation, Panel Sealing, Enclosure Gasketing |
| VMQ Silicone | 40–70 Shore A | −60°C to +230°C (−76°F to +446°F) | Excellent chemical and heat resistance | Very low (10–20%) | High-Temp Insulation, Static Sealing |
| Platinum-Cured Silicone | 40–60 Shore A | −60°C to +230°C (−76°F to +446°F) | Excellent, FDA-approved materials | Very low (≤15%) | Food, Medical, Hygienic Sealing |
| Peroxide-Cured Silicone | 50–70 Shore A | −50°C to +200°C (−58°F to +392°F) | Good solvent resistance | Low (15–25%) | Industrial Silicone Sealing |
| Fluorosilicone (FVMQ) | 50–70 Shore A | −55°C to +200°C (−67°F to +392°F) | Excellent fuel and solvent resistance | Low (15–25%) | Fuel-Resistant Gaskets, Aerospace, Automotive |
You choose the right neoprene gasket by evaluating operating temperature range, durometer on the Shore A scale, fluid or chemical compatibility, required sealing force, and dimensional tolerance requirements.
These variables determine how the gasket compresses, recovers, and maintains sealing integrity under load. You should also confirm compliance needs, such as FDA, RoHS, or ASTM standards, when the application involves regulated environments or specific material certifications.
For example, if your application involves an outdoor electrical enclosure exposed to moisture and temperature variation, a closed-cell neoprene gasket with a medium Shore A durometer provides effective sealing force, moisture resistance, and tolerance stability while maintaining flange compatibility under environmental exposure.
Neoprene gaskets are commonly used in the following industries:
Neoprene gaskets are used in ducting, air handlers, and HVAC enclosures to provide airtight sealing, vibration isolation, and resistance to temperature fluctuation. They improve system efficiency and noise control.
In plumbing systems, neoprene gaskets create watertight seals in joints, fixtures, and connections. They help prevent leaks while accommodating minor movement and pressure variation.
Neoprene gaskets are installed around panels and cabinet doors to protect against dust and water ingress. They support IP65 and IP67 sealing requirements for indoor and outdoor electrical systems.
They are used in engine compartments, body panels, and sealing interfaces to absorb vibration, resist oils and weathering, and maintain reliable sealing under thermal cycling.
Neoprene gaskets support leak prevention and vibration damping in pumps, compressors, and equipment housings. These features contribute to a reliable operation and reduced maintenance.
In door and window assemblies, neoprene gaskets provide weatherproof sealing against air, moisture, and dust while maintaining flexibility and long-term compression stability.
The key features and benefits of neoprene gaskets include:
Neoprene gaskets perform reliably across −40°C to +120°C for neoprene grades, with silicone variants available up to −60°C to +230°C where higher thermal limits are required.
They provide excellent UV/ozone resistance and support outdoor use without cracking or hardening.
Neoprene gaskets are stable against water, mild oils, and common chemicals, supporting hygienic sealing in regulated environments.
They maintain seal integrity under sustained load with low compression set (≈15–30%), ensuring consistent contact pressure.
Neoprene conforms to surface irregularities and maintains sealing force across low to moderate sealing pressures.
They are designed for 5–10 years of operation when correctly specified and installed, delivering long-term stability and reduced maintenance.
Here are some frequently asked questions about our Neoprene Gasket to help you find the answers you need:
Neoprene gaskets operate between −40°C and +120°C. Performance remains stable within this range when material grade and compression are correctly specified.
Neoprene gaskets are suitable for outdoor use. They resist UV, ozone, and weather exposure. This allows gaskets to maintain flexibility and sealing performance in outdoor environments.
Yes, neoprene can be used with oils and fuels. It offers moderate resistance to oils and petroleum-based fluids. However, compatibility should be verified for continuous or high-exposure applications.
Rubberxpert neoprene grades meet industry compliance requirements. Verification is required when FDA, RoHS, or ASTM standards apply.
